Disks - based passive samplers
A passive sampler with SPE disks as collecting phase
Ease to use and handle
Wide collection of SPE disks: HLB, RPS, C18, SAX, SCX, Chelating…
Refill kits to recycle the housing

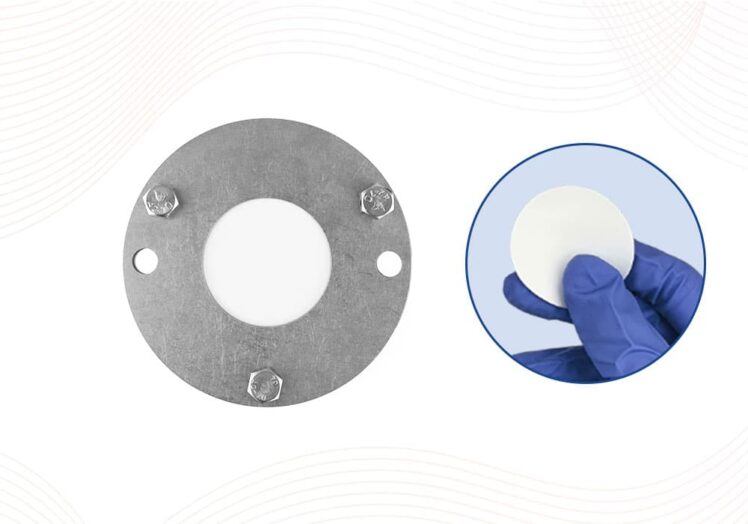

Disks-based passive samplers are passive samplers using SPE disks as collecting phase for the contaminants. A large collection of AttractSPE®Disks such as HLB, SAX, SCX, C18, RPS, DVB (a.k.a SDB), chelating can be used for AttractSPE®Disks Passive Samplers or for Chemcatcher®. An homogeneous uptake of contaminants can be done on the whole exposed area of the disks.
AttractSPE®Disks Passive Samplers or Chemcatcher® are very similar in their use. In both devices, the housing has a aperture of 40mm on one side of the device whereas the other side is full. AttractSPE®Disks Passive Samplers housing is made of inox and can be used on the 3-passive sampler holder whereas Chemcatcher® housing is made of PTFE.
These devices are designed to provide time weighted average (TWA) concentration of polar or non polar organic compounds as well as metals during the sampling period
Refill kits
Refill kits of ready-to-use membranes and of SPE disks are also available to re-use metal frameworks.
Passive sampling on groundwater
The 90mm diameter of the AttractSPE®Disks Passive Samplers is suitable for surface water whereas long and rectangular shapes are available for ground water.
- Ease to use and handle
- No supervision required
- Available formats for surface and groundwater monitoring
- Wide collection of SPE disks: HLB, RPS, C18, SAX, SCX, Chelating…
- Refill kits with SPE disks and ready-to-use membranes to reuse the housing
Application note
- Water analysis
AN-0012-02 | Disk based passive samplers for the analysis of 22 chlorinated acid herbicides in water surfaces using AttractSPE® Disks Anion Exchange – SR
Article
Díaz-Montaña, E.J. and Domínguez-Gil, S. (2025) « Multisampling Strategies for Determining Contaminants of Emerging Concern (CECs) in the Marine Environment », Journal of Xenobiotics, 15(5), p. 149.
Product used: Disks-based AttractSPE® HLB (Rf. DBPS.HLB.90.40.kit.10)
Other articles here: Environmental Monitoring of water
Webinar | Passive Samplers: Chemical Contaminants Assessment from the JDS4
Webinar | Passive Samplers: Bioanalytical Assessment from the JDS4
