Manifolds for Disks

One-, three- or six-station SPE disks manifolds for simultaneous extractions of several 1-L samples on a very simple and easy-to-handle way.

One-, three- or six-station filtration manifolds allow the simultaneous extractions of several 1-L samples on a very simple and easy-to-handle way.

Widely used for chemistry analyse, biochemical, pharmaceutical, sanitation test, environment test, water quality analyze, food, beverage and science research and so on, the product makes possible the testing of one, three or six samples at the same time during a very simple operation. According to his needs, the operator choose different materials of membrane filter or SPE disks to filter different samples, such as suspended solids, bacteria, chlorophyll etc…

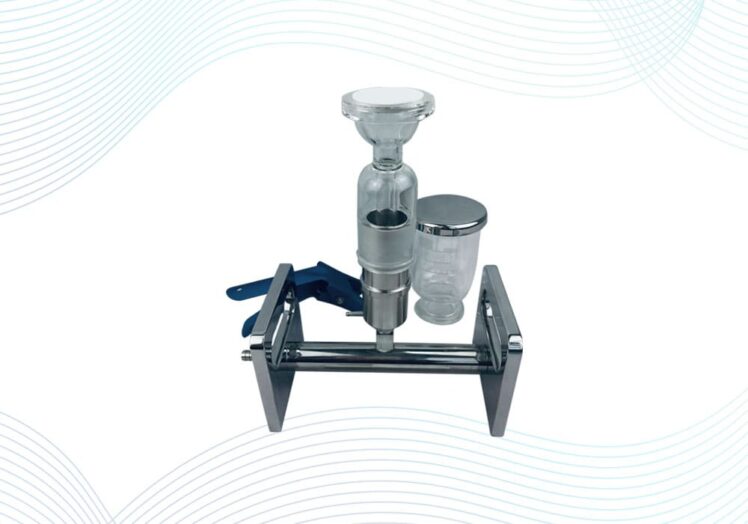

The manifold is a very compact stainless steel device with a filtration glassware. Stainless steel can resist to acids and bases, corrosion, high temperature and can tolerate the high temperature of 180℃ making easy high temperature sterilization. Each station is controlled through an independent flow control valve.

When used with SPE disks, a designed location for vials makes easy the elution collect.



The package contains :
• A stainless-steel manifold with 1, 3 or 6 stations for 47mm SPE disks.
• For each station :

  • a polypropylene grating
  • a glass support base and PTFE frit
  • a clamp
  • a 300 mL glass funnel
  • and a lid.

Products list

Product Name Product Price Product SKU Cart Actions

SPE Disks Manifold – 6 stations – 47mm

Ref. : ACC-DISKSPE-G47-6

SPE Disks Manifold – 3 stations – 47mm

Ref. : ACC-DISKSPE-G47-3

SPE Disks Manifold – 1 station – 47mm

Ref. : ACC-DISKSPE-G47-1
