Powder-based Polymeric SPE
Thanks to its expertise in polymer chemistry, AFFINISEP has developed a complete range of polymeric SPE phases with various chemistries, various particle sizes as well as porosities: AttractSPE®.
AttractSPE® are solid phase extraction cartridges making possible the extraction of compounds from simple and fast matrix cleanup to more complex matrices based on six common retention mechanisms used in analytical laboratories:
- Polar Modified Reversed Phase: Hydrophobic-hydrophilic balance (HLB)
- Mixed-mode Strong Cation Exchange: SCX
- Mixed-mode Weak Cation Exchange: WCX
- Mixed-mode Strong Anion Exchange: SAX
- Mixed-mode Weak Anion Exchange: WAX
- Reversed phase: DVB
AttractSPE® is available under 2 main format :
- Disk format : AttractSPE® Disk that is a thin, soft membrane. It is self-held and no need to frits. Based on particle size around 10µm to 15µm, It has a high surface area giving its high capacity. AttractSPE® Disk is available as cartridges, tips or 96-well plates, spin.
- Powder format: AttractSPE® Power are based on 30µm, 60µm or 100µm (depending to the SPE cartridges format), the powder is held between 2 frits.
All of our polymeric SPE are available for ASPEC (Gilson) and MPS (Gerstel) automate.
AttractSPE® products provide all the advantages of polymeric sorbents, including robustness, simplified method development, wide applicability and are not affected by drying out. The combination of the water-wettable optimised surface chemistry, high surface area and pH stability ensures high reproducible recoveries for a wide range of analytes.
Simply follow the method to choose the optimal AttractSPE® polymeric phase for your analysis:
- Determine the nature of the target analyte: neutral, acidic or basic.
- Determine the pKa of the analyte.
- Using the following chart, choose the most appropriate AttractSPE® phase.
Product families

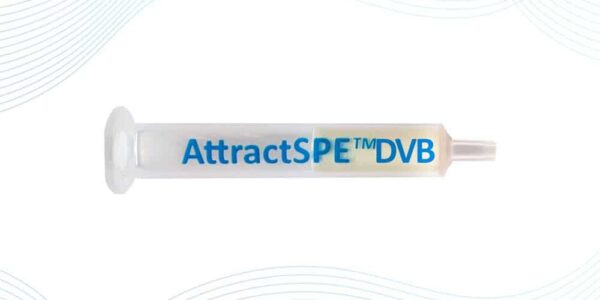

DVB SPE
A polystyrene-divinylbenzene copolymer presenting a high hydrophobicity for the extraction of hydrophobic analytes.

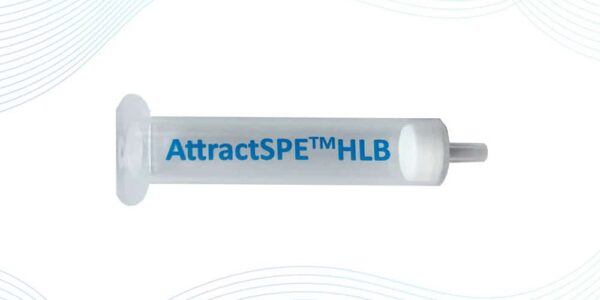

HLB SPE
AttractSPE®HLB are uncharged water-wettable polymeric resin suitable for the extraction of a wide range of analytes (polar, apolar, neutral, acidic, basic…).

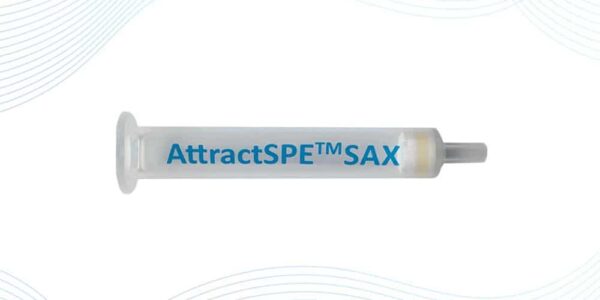

SAX SPE
AttractSPE®SAX is Solid Phase extraction based on a strong anion exchange polymeric phase. It is particularly suited for the extraction of weak acids (pKa 2 – 8).

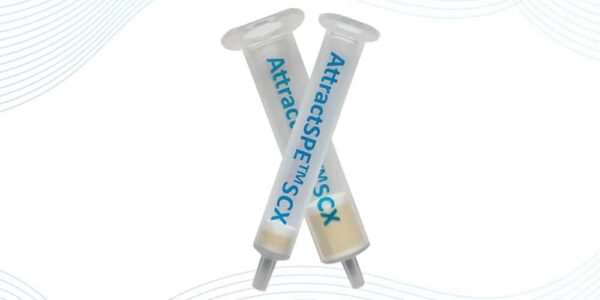

SCX SPE
AttractSPE® SCX is solid phase extraction based on a strong cation exchange polymeric phase particularly suitable for the extraction of weak bases (pKa 2 – 10).
WAX SPE
AttractSPE®WAX is a weak anion exchange polymeric phase particularly suited for the extraction of strong acids (pKa)
WCX SPE
AttractSPE® WCX is a solid phase extraction based on a weak cation exchange polymeric phase, particularly suitable for the extraction of strong bases and quaternary amines (pKa>10).
